HRV-Scanner – Studienmodul


For users who want to work scientifically, the HRV scanner provides a study module in the study version.

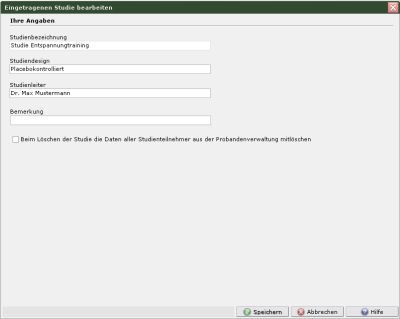

Append a new study


  • Each study is managed individually in the HRV-Scanner.
  • Complete data backups of a study are possible.
  • All measurements of a study can be evaluated automatically.

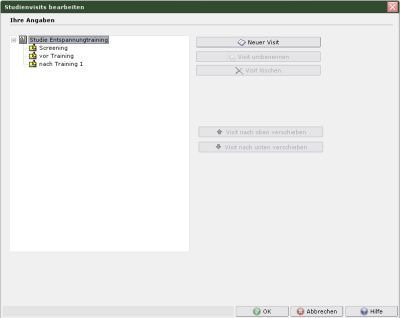

Define study structure


  • A study can be structured into different visits, which makes it easy to allocate measurements properly.
  • A visit defines a point of time at which measurements should be carried out (e.g., screening, pre-application, application, control).
  • The visit-based structure eases the retrieval of measurements in the analysis.

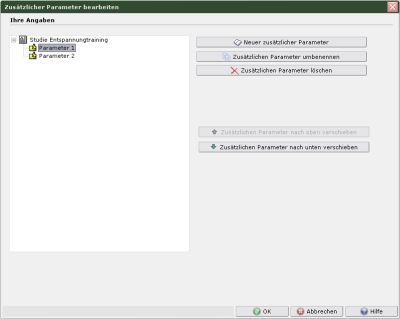

Additional parameters within a study


  • Additional parameters can be defined within a study. These additional parameters will be included in the list of HRV parameters (for example, weight, laboratory parameters, …).
  • These parameters are defined as text fields and their values can be entered during measurements.
  • These additional parameters are also exported during an export and can be used further.

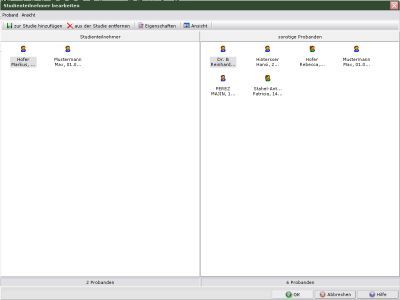

Study participants


  • The participants of a study are recruited from the subject database in the HRV-Scanner.
  • When designing the study layout, it is determined who will participate in this study (changes are possible at any time)

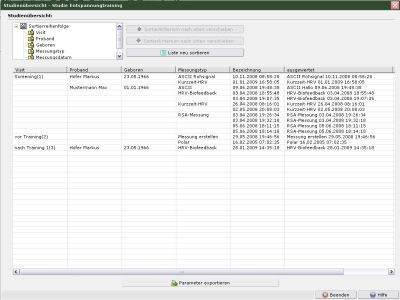

Study overview


  • Provides a list of the measurements carried out within the selected study.
  • You can sort the measurement list according to different criteria.

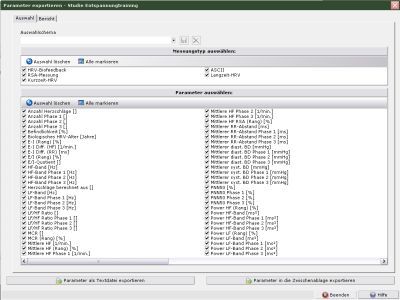

Export parameters


  • The calculated parameters can be exported in an adjusted sorting order.
  • In a second step, you can select which measurement types and which parameters should be exported.
  • An export list of all study parameters can be created, which can be imported quickly and effectively into external statistics programs.
